Description

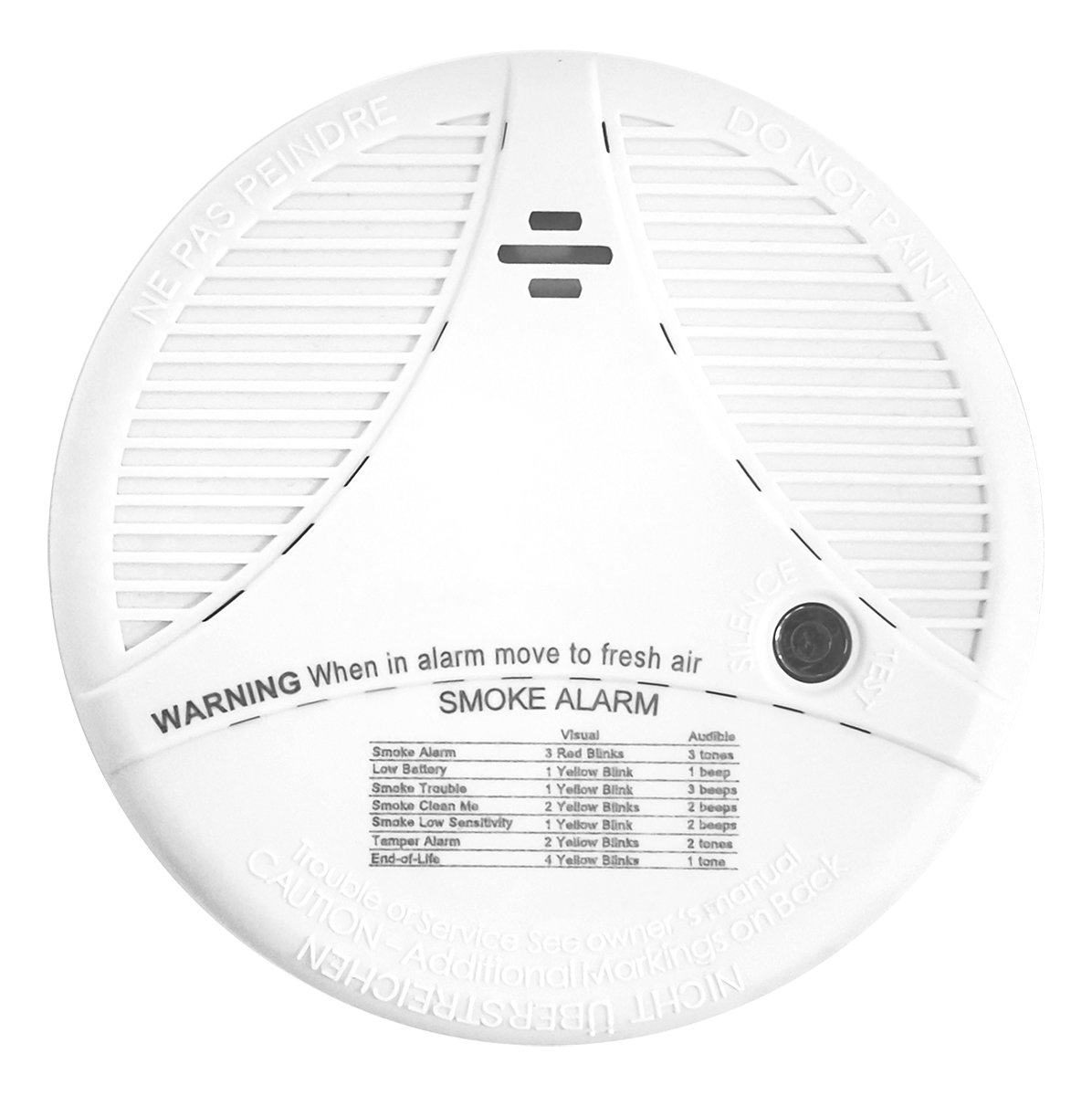

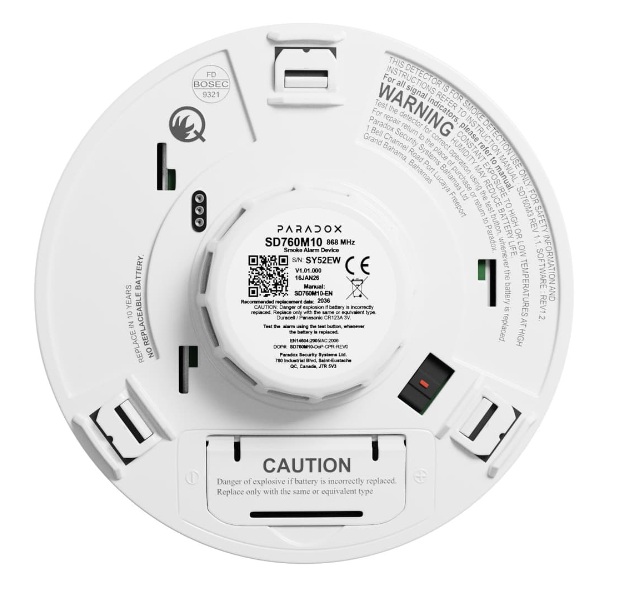

The SD760M10 is a wireless smoke detector for the Paradox M System with a battery life of up to 10 years
Introduction
Highly sensitive photoelectric (optical) smoke detector with a built-in buzzer and a test button to check the sensor’s health.
Technical Specifications:
| Wireless type: | GFSK two-way with frequency and encryption hopping |
|---|---|
| RF Frequency: | 868 (865.05 – 867.95) MHz |
| RF power: | 868 MHz kuni +14 dBm |
| Transmission Time: | Less than 20 ms |
| Supervision Time: | 20 minutes, 10 minutes (Default), and 3 minutes |
| Status Indicators: | Battery, temperature, TX/RX values |
| Battery Lithium: | 2 x 1.5 VDC AA, 1x 3.0 VDC CR123A, (up to 10 years of battery life) |
| Installation Environment: | Indoor |
| Firmware Upgrade: | Remotely over the air, via BlueEye |
| Operating Temperature: | 4.4°C to +37.8°C |
| Auto Learn: | Yes |
| Colors: | White |
| Dimensions: | 12 Ø x 4.6 cm |
| Weight: | 0.21 kg |
| Certifications: | CE, EN 14604, FCC 15.247 |
-
Manufacturer: Paradox
-
Model: SD760M10
-
SKU: -
-
Availability: Available soon!
