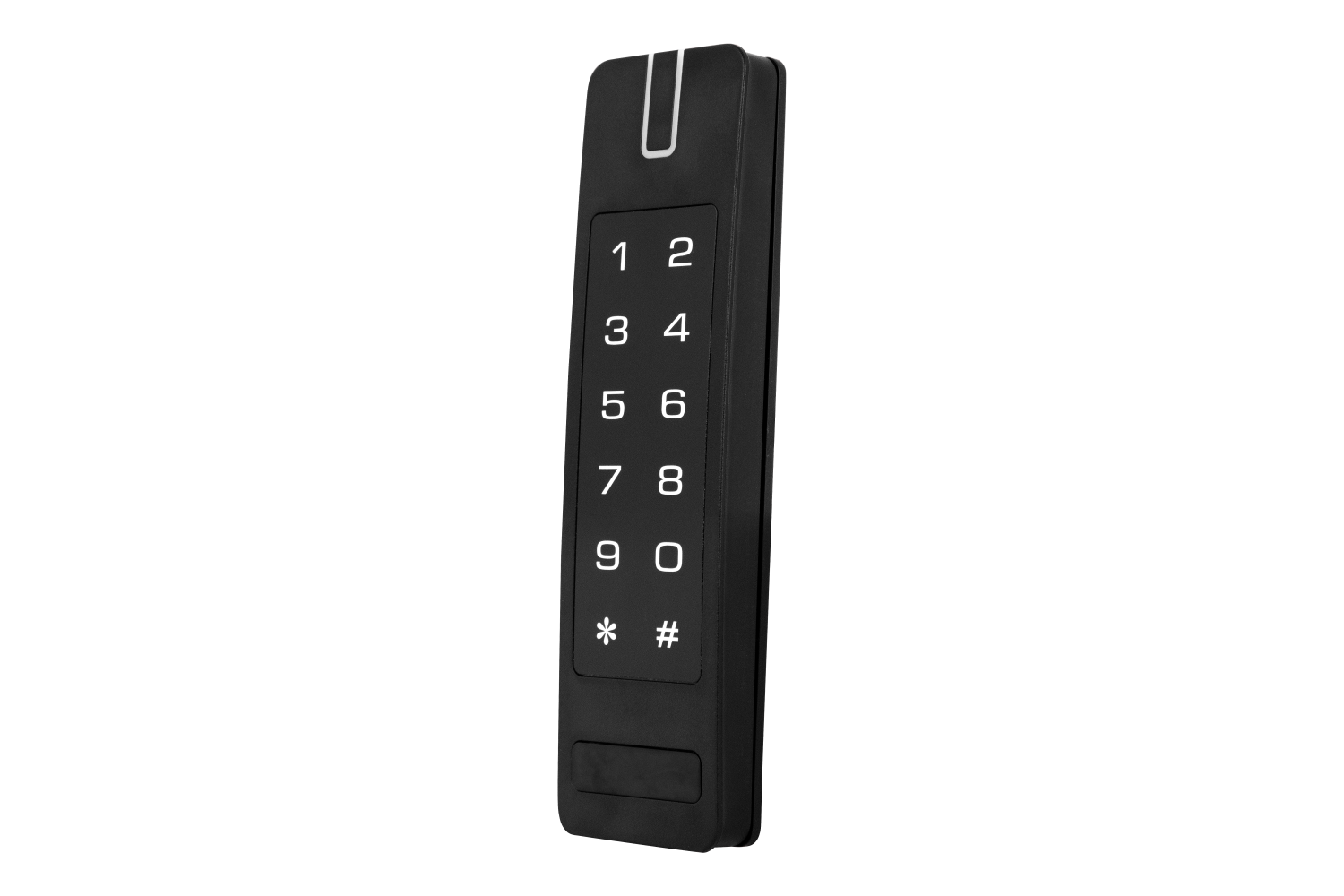

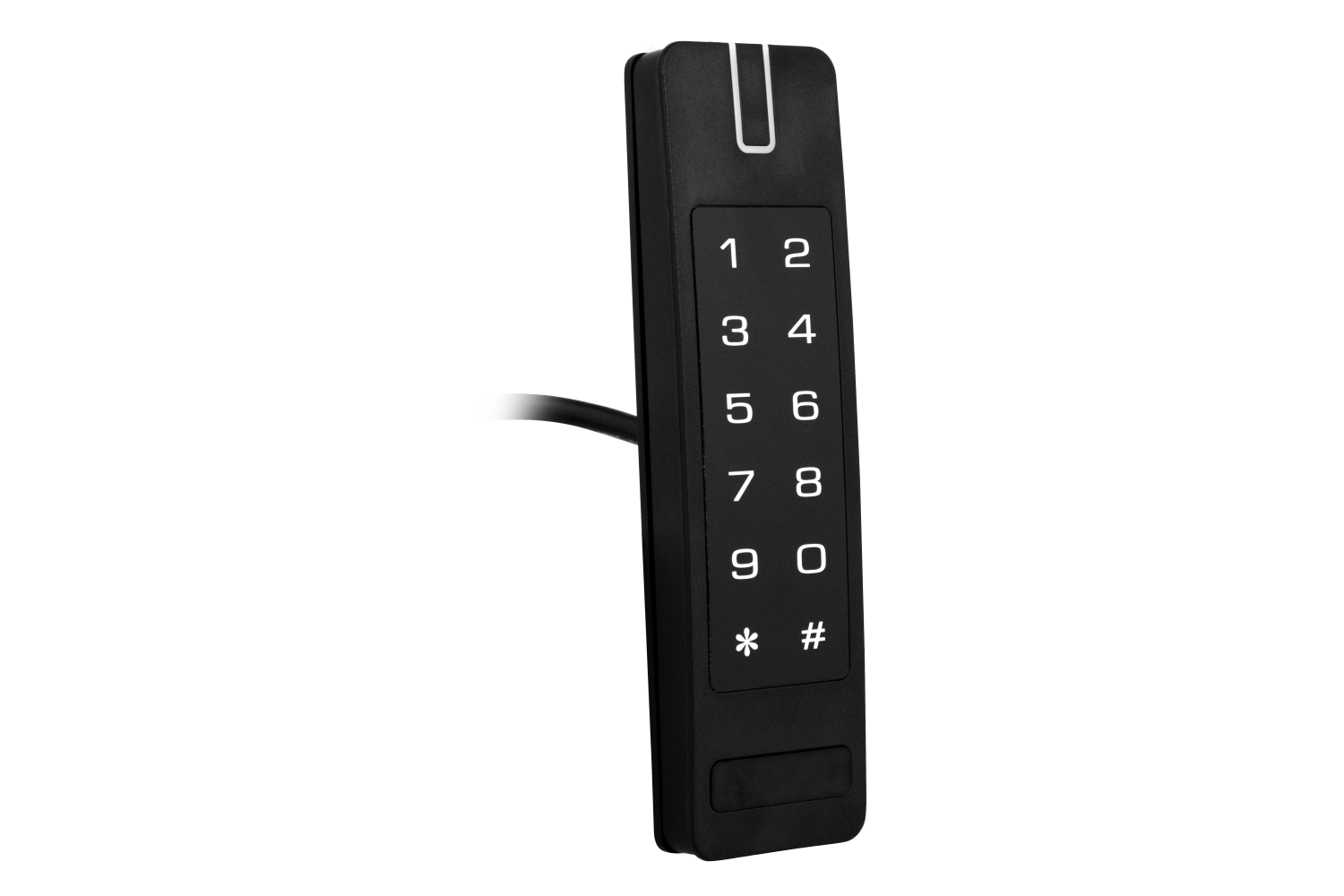

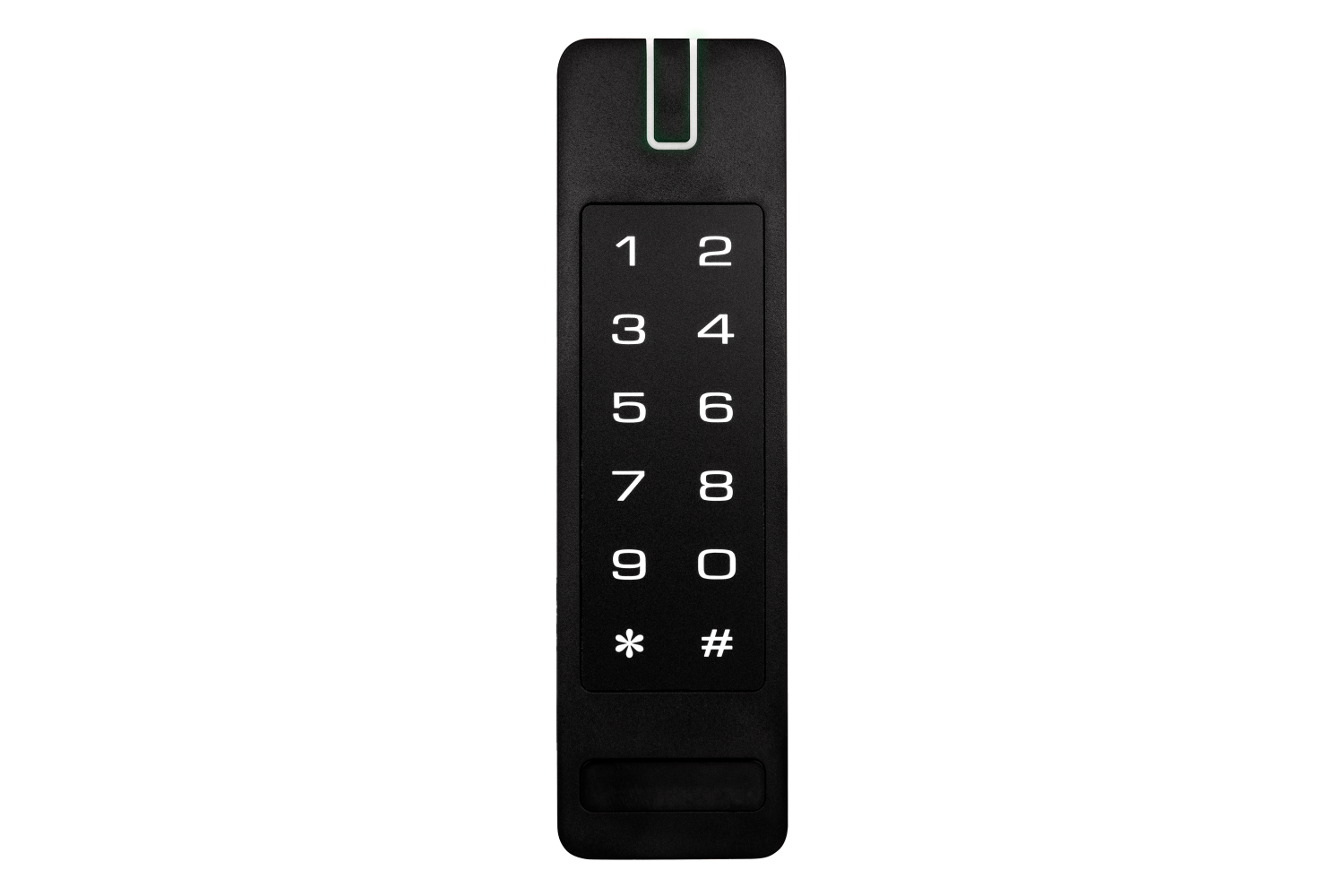

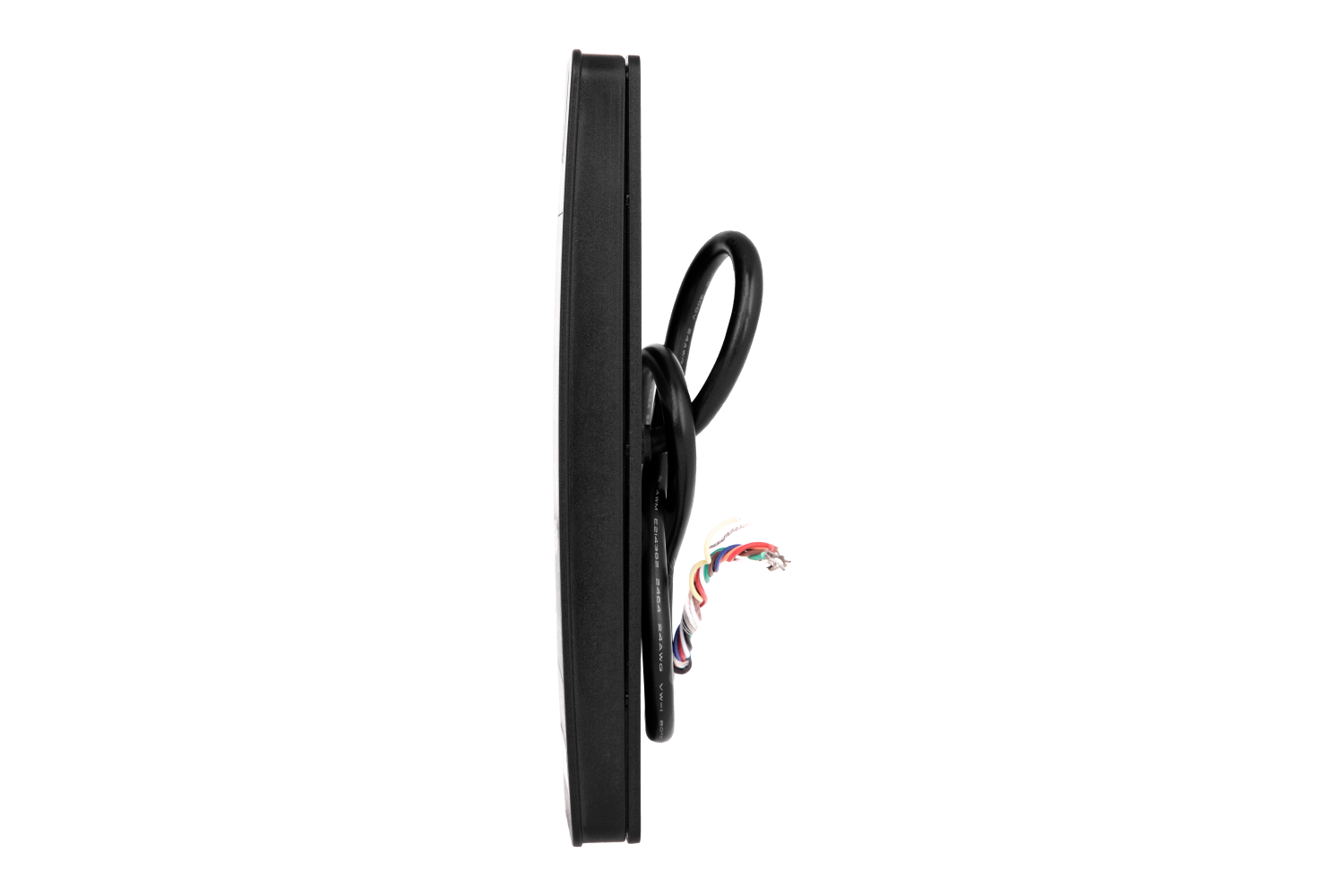

U-Prox SE keypad

U-Prox SE keypad

Business user account

Log in!

Description

Supports 125 kHz ASK and FSK, MIFARE® Classic, MIFARE® PLUS S/SE/X/EV1 with AES encryption, DESFire® EV1/EV2/EV3 with AES encryption. Compatible with Wiegand or OSDP, configurable via mobile application. Suitable for use with Paradox ACM12 access control module (26-BIT WIEGAND).

Card Reader Capabilities:
Supports 125 kHz ASK and FSK, MIFARE® Classic, MIFARE® PLUS S/SE/X/EV1 with AES encryption, and DESFire® EV1/EV2/EV3 with AES encryption.
Supports U-Prox ID Mobile identification via NFC and 2.4 GHz radio communication (up to 12 meters), as well as U-Prox Tag and U-Prox Auto Tag identification via 2.4 GHz radio communication (up to 12 meters).

Supported Interfaces:
Wiegand 26, 32, 34, 37, 40, 42, 56, 58, 64, 80 bits; Wiegand Auto; RS-232; OSDP v2 (RS-485); TouchMemory.

Configuration:
Configurable via smartphone using the U-Prox Config app.

Additional Features:
Includes two covers (gray and black).
Synchronization mode for closely installed readers.
Door or barrier mode for use with U-Prox Mobile ID, U-Prox Mobile Config, and U-Prox Mobile ID mobile applications.

  • Manufacturer: U-Prox
  • Model: U-Prox SE keypad
  • SKU: 3371
